Optimizing Cure with the ESR
Troubleshooting Prepreg Failures with Encapsulated Sample Rheometer (ESR)
Key Factors to Examine
Understanding the complexities of curing in prepreg materials is crucial for advancing composite material research. By examining key processing parameters, we can uncover insights into the resin curing process and viscosity levels, furthering the reliability and performance of composite materials.
Tackle Gel Content Issues in Elastomer Production
Optimizing the cure process for prepreg materials can be a challenge, given the multiple complexities of resin curing. In this video, Alpha Technologies expert Unal Yilmazoglu joins Richard Hanzlik to discuss how different parameters affect the cure process.
Watch as Unal and Richard dive into the unexpected impacts of:
- Cure temperature.
- Ramp rate.
- Pressure.
- Out-time.
- Layup orientation.
Unal and Richard also discuss how the Alpha Technologies Encapsulated Sample Rheometer (ESR) grants deeper insight into these parameters, allowing for more strategic optimization of prepreg materials.
Troubleshooting Common Prepeg Failure Modes with Rheological Measurements
Alpha Technologies researchers evaluated the influence of five processing parameters on the rheological behavior and mechanical properties of prepreg composites using an Encapsulated Sample Rheometer (ESR).
Summary of the key parameters examined:
Pressure
Applying optimal pressure ensures resin flows and bonds effectively, promoting uniformity in prepreg composites. Proper pressure also enhances fiber-resin consolidation in composite materials.
Heating Ramp Rate
An optimal ramp rate helps resin flow through fibers, minimizing voids and enhancing composite material properties. Faster ramp rates may hinder prepreg curing and create uneven resin distribution.
Cure Temperature
Higher cure temperatures improve thermal stability but may cause warping in prepreg materials. Balancing thermal stability and mechanical integrity is key in the resin curing process.
Out-Time
The out-time affects prepregs’ viscosity levels and resin curing process. Extended out-time improves flow and final properties of composite materials by adjusting viscosity levels before curing.
Layup Orientation
Fiber orientation in prepreg composites affects strength, stiffness, and load-bearing capacity. Different orientations improve composite material resistance, with a 45-degree orientation demonstrating balanced performance.
About the Study
Alpha Technologies’ Unal Yilmazoglu, Applications Engineer, and Richard Hanzlik, Product Manager, developed this in-depth exploration of composite prepreg failure modes to enhance understanding of prepreg materials’ performance.
For full study results, data, graphic charts and further explanation, download the white paper.
Applications Engineer
Product Manager
The study was conducted using the Premier ESR® rheology testing instrument from Alpha Technologies, which is in compliance with ASTM standards (ASTM D7750).

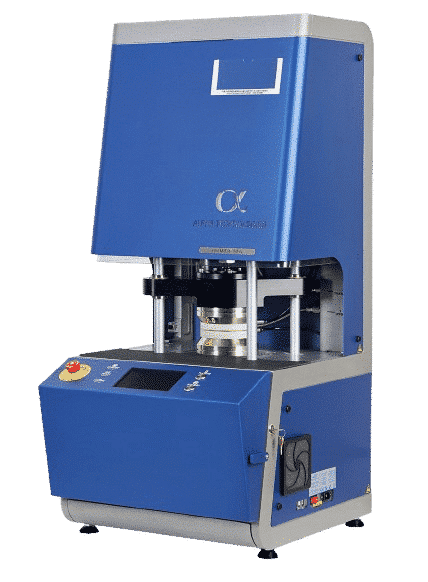

Premier ESR
A 3-in-1 Testing Solution for Composite Materials
By combining three essential rheology instruments into one system – parallel plate rheometer, DSC, and DMA – the Premier ESR simplifies comprehensive rheology testing for composite materials.
With its high accuracy, this instrument reduces the need for multiple rheology testing equipment setups, making rheology testing simpler and more cost-effective for labs. The Premier ESR is versatile, handling resins, powders, pellets, liquids, and prepregs to perform a full spectrum of tests that support innovation in high-performance composite materials.
Advance Your Lab’s Composite Material Testing
Request a conversation with Alpha Technologies’ engineers to explore how the Premier ESR can elevate your prepreg curing process for the next wave of high-performance materials.
