Introduction
To understand the viscoelastic behavior of a material, Dynamic Mechanical Analysis (DMA) is one of the most useful characterization techniques. It helps in understanding the response of a material’s structure to different environmental conditions (for example, frequency, temperature, load, etc.), resulting in optimization of mechanical properties.
Among these conditions, this application note focuses on the effect of frequency on the glass transition temperature (Tg) of an EPDM material.

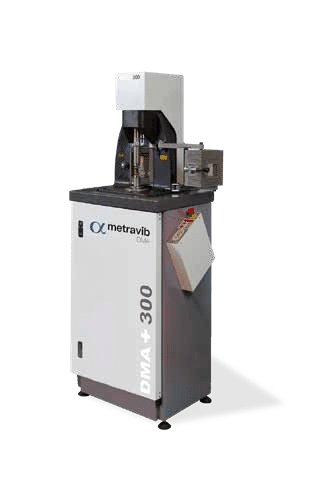

All tests presented in this study were performed using the Alpha Metravib DMA+300.
FREE DOWNLOAD
Introduction to Dynamic Mechanical Analysis for Rubber Materials
Materials & Methods
The material tested was EPDM (ethylene propylene diene monomer). EPDM is a durable synthetic rubber commonly used across many industries, such as tire manufacturing.

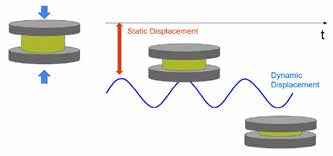

The specimens used were standard Goodrich cylindrical blocks with a diameter of 18mm and a height of 25mm. The specimens were studied in compression mode (see Figure 2). A dynamic force of 10N was applied to the specimen, along with a static force of 20N to ensure that the specimen remained in contact with the specimen holders.
Since the objective was to demonstrate the effect of frequency on a material’s glass transition temperature, a temperature ramp from −60°C to 100°C was performed at three different frequencies: 1Hz, 10Hz, and 50Hz. This test mode was selected because it is especially fast and provides more data points than a classic frequency sweep performed at multiple temperature stages. The test parameters are summarized in Table 1.
Table 1. Test Parameters
| Dynamic force | 10N |
|---|---|
| Frequency | 1Hz, 10Hz, 50Hz |
| Static force | –20N |
| Temperature | −60°C to 100°C (60min stabilization at −60°C) |
| Rate | 2°C/min |
| DMA | DMA+300 |
| Test mode | Compression |
Results

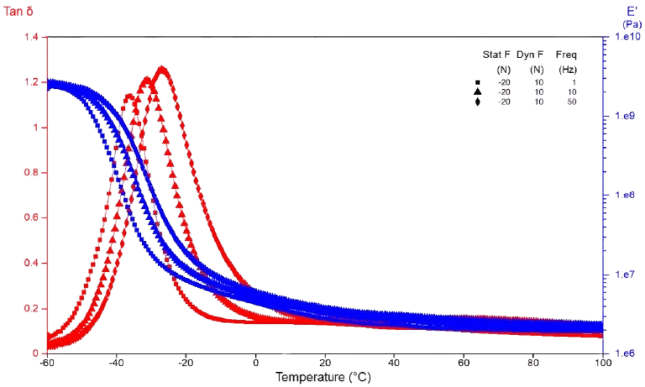

Figure 3 shows the results obtained from the temperature ramps performed at the three selected frequencies. The results are presented in terms of storage modulus (E′) and loss factor (tan δ) as a function of temperature. The decrease in E′ with increasing temperature indicates molecular dynamic rearrangements of elastomer chains between the glassy state (localized molecular movement) and the rubber-like state (high-amplitude movement) [1].
As shown in Figure 3, frequency has a clear effect on the glass transition temperature of the material. An increase in Tg with increasing frequency was observed, with Tg shifting from −36°C to −27°C as frequency increased from 1Hz to 50Hz.
An increase in tan δ magnitude with increasing frequency was also observed. At low frequencies, elastomer chains have more time to relax and respond, resulting in more viscous behavior and lower tan δ values. At higher frequencies, the chains have less time to relax and respond, leading to more elastic behavior and higher tan δ values.
FREE DOWNLOAD
Introduction to Dynamic Mechanical Analysis for Rubber Materials
Conclusions
This application note demonstrates the capability of the Metravib DMA+300 to characterize elastomer materials. Temperature ramps performed at different frequencies provided clear insight into the effect of frequency on the glass transition temperature of EPDM.
Additionally, the behavior of storage modulus (E′) and loss factor (tan δ) as a function of temperature was evaluated. Both glass transition temperature and tan δ magnitude were observed to increase with increasing frequency, which is correlated with differences in relaxation time available to the polymer chains. To download the full PDF, click here.
KEY TAKEAWAY
DMA temperature ramps show that increasing test frequency shifts the glass transition temperature and viscoelastic response of elastomer materials.
