- DMA testing
- Precise measurement of viscoelastic properties
- Determination of glass and secondary transitions
- Static and quasi static testing: creep, stress relaxation, tension, compression…
- Fatigue testing on material and industrial component specimens (with controlled waveform)
- Crack growth testing
- Analysis of solid, pasty and liquid materials: elastomers, plastics, composites, biomaterials, etc.
- Particularly well suited to polymer and composite characterization (polymerized materials, follow-up of polymerization process, simultaneous DMA/calorimetry, fatigue)
- Particularly well suited to elastomer testing and characterization (Mullins effect, Payne effect, frequency sweep, Heat Build Up, crack growth testing, etc.)
- Materials humidity dependence analysis
- Comparison and classification of complex materials for design engineering
- R&D / Quality Control / Education / Lab work
High Force DMA+ Series
Material characterization solutions
The DMA+ series instruments are dynamic testing machines based on a innovative concept of one-piece high rigidity test frame. They are dedicated to the accurate analysis of the viscoelastic properties of most advanced materials.
The DMA+ high-rigidity one-piece test frame has been designed to offer the largest stiffness and frequency analysis ranges, along with first-class ergonomics.
Dyna+ software makes possible an extended variety of DMA tests, in order to follow up the dependence of the material viscoelastic properties to many parameters. Using the optional Fatigue module of Dyna+ software, the testing capabilities can be enlarged to enhanced fatigue testing, Heat Build-Up testing, or crack growth testing.
| Frequency: | Min: 0.00001 Hz Max: 200 Hz Optional Max: 1000 Hz |
| Temperature Range (Hot mode): | Min: Ambient Max (Standard thermal Chamber): 500 C Max (Thermal Chamber w/ Window): 300 C Max (Thermal Chamber w/ Infrared Window): 200 C Max (crack growth thermal chamber): 150 C Min Variation rate (heating): 0.1C/min Max Variation rate (heating): 10 C/min Thermal Control Stability: +/- 0.1 C |
| Temperature Range (Cold mode - Cryogenic sources) -Optional | Min: -150 C Min Variation rate: +/- 0.1C/min Max Variation rate: +/- 10 C/min Thermal Control Stability: +/- 0.2 C |
Get more value from your DMA
Options that expand the capabilities of your DMA.
Fatigue crack growth testing module
Advanced tests to measure elastomer cracking
Resistance to fatigue, ageing and crack growth are major issues for rubber like materials.
Current commercial methods for crack growth testing have been restricted to time to failure test.
Since 1999, cooperation with leaders of the Tire industry led Metravib to propose various customized testing machines dedicated to crack growth testing.
Based on this extensive experience, Metravib developed a Fatigue Crack Growth Testing Module to bring to rubber industry and research a quantitative and productive advanced testing instrument.
Fatigue Heat Build-Up testing module
Prevent your rubber parts from overheating
Temperature increase in rubber is the principal cause of degradation and can lead to fatigue cracking.
For rubber goods (tire, belts, vibration mounts …) Heat Build Up (HBU) is part of a maker’s design specifications that have to be checked and well controlled.
Metravib Heat Build Up module is a major add-on to the DMA+ series to analyze accurately rubber compounds’ response to repeated mechanical excitation under multiple parameters and advanced testing conditions.
Automated systems for DMA+ Series
Xpander: the reliability of DMA testing
Metravib Xpander is a unique cost-effective solution to address the increasing throughput requirement of testing laboratories. Xpander is an automated specimen handling system dedicated to the DMA+ series Dynamic Mechanical Analyzers. Xpander allows DMA test campaigns to run continuously around the clock and autonomously without any operator intervention. Xpander’s flexibility makes possible to accommodate with material specimens of various shapes and sizes. As a pioneer in the automation of dynamic testing, Metravib has been supplying the leaders of the rubber and tire industries with robust automated DMA for more than 20 years.

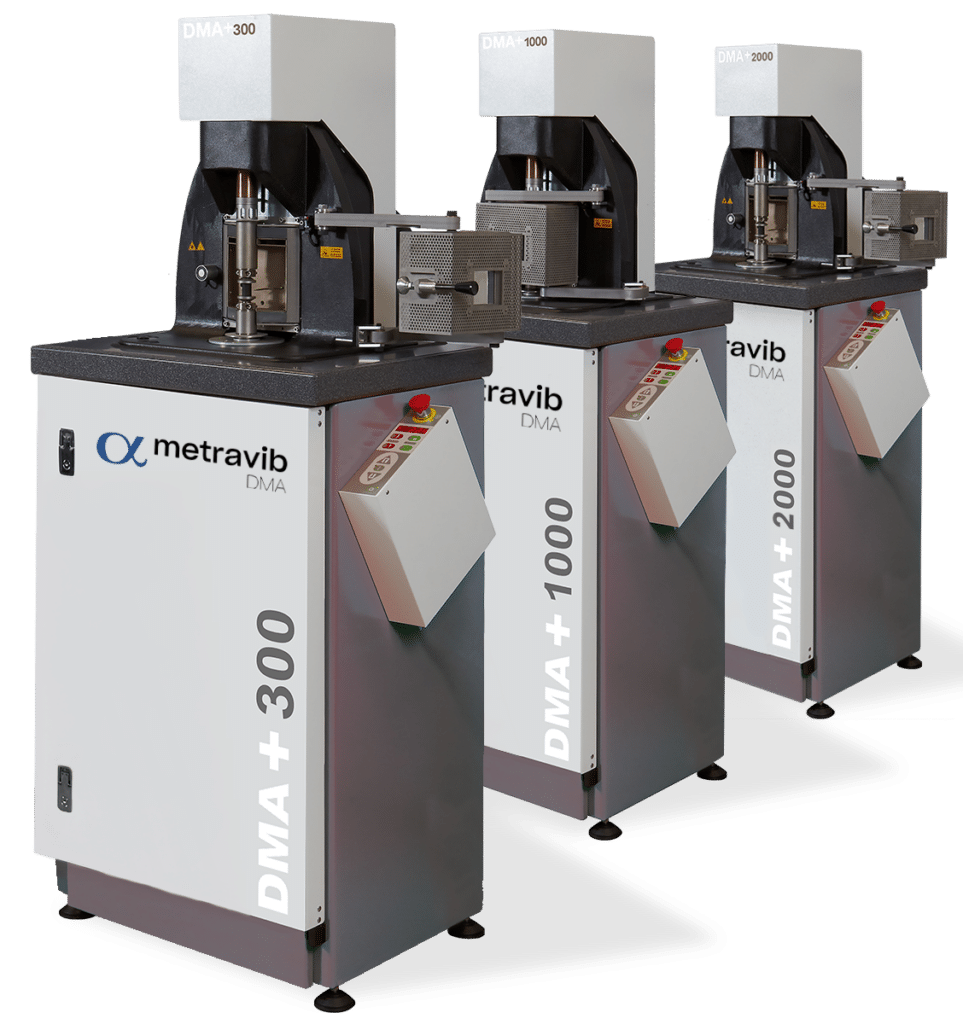

The advantages of DMA+300, DMA+1000 and DMA+2000
Material characterization solutions
The DMA+ series instruments are dynamic testing machines based on a innovative concept of one-piece high rigidity test frame. They are dedicated to the accurate analysis of the viscoelastic properties of most advanced materials.
The DMA+ high-rigidity one-piece test frame has been designed to offer the largest stiffness and frequency analysis ranges, along with first-class ergonomics.
Dyna+ software makes possible an extended variety of DMA tests, in order to follow up the dependence of the material viscoelastic properties to many parameters. Using the optional Fatigue module of Dyna+ software, the testing capabilities can be enlarged to enhanced fatigue testing, Heat Build-Up testing, or crack growth testing.
