Instruments

Meet the Family of Instruments

Proprietary design and manufacturing means instruments that provide data that’s more reliable, repeatable, reproducible.

A drier, a chiller (without the use of liquid nitrogen) and proprietary technology to test cured samples down to -25ºC.
Sub-Zero Technology
Physical Properties, Rheology, Rheology Accessories
A precision cutting machine labeled "Alpha Technologies Cutter 3090R," designed for accurately slicing materials with a compact, industrial design, featuring a transparent cutting surface and safety latches on the side.
Sample Cutter
Physical Properties, Rheology, Rheology Accessories
A blue automated machine from Alpha Technologies, designed for sample preparation, featuring multiple rollers for material handling and a digital control interface.
Sample Automation Systems
Physical Properties, Rheology, Rheology Accessories
A compact, silver device labeled "D2020 Density" from Alpha Technologies, used for analyzing material dispersion with a sleek design and precision sample insertion mechanism.
D2020 Series
Physical Properties, Rheology, Rheology Accessories
A compact, black and silver device labeled "disperGRADER αview" from Alpha Technologies, used for analyzing material dispersion with a sleek design and precision sample insertion mechanism.
AlphaView Dispergrader
Physical Properties, Rheology, Rheology Accessories
Premier ESR – Encapsulated Sample Rheometer (ESR)
Physical Properties, Rheology, Rheology Accessories
Premier MV – Mooney Viscometer
Physical Properties, Rheology, Rheology Accessories
Premier MDR from Alpha technologies
Premier MDR – Moving Die Rheometer
Physical Properties, Rheology, Rheology Accessories

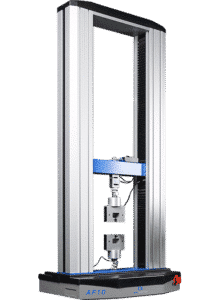

AlphaFlex10™ Tensile Tester
Premier RPA – Rubber Process Analyzer
Physical Properties, Rheology, Rheology Accessories

Rheometer Instrument Selection Guide

  • Please rotate to view horizontally on mobile
 Premier MVPremier MDRPremier RPAPremier ESRMDR-C
ASTM D5289 ⬤⬤ ⬤
ASTM D6204ABC  ⬤
ASTM D6601  ⬤
ASTM D7050  ⬤
ASTM D8059  ⬤
ASTM D7750   ⬤
ASTM D4440   ⬤
ASTM D1646⬤
ISO 6502 ⬤⬤ ⬤
ISO 289⬤
 Premier MVPremier MDRPremier RPAPremier ESRMDR-C
Temperature RangeAmbient to 200ºCAmbient to 230ºCAmbient to 230ºCAmbient to 230ºCAmbient to 200ºC
High temperature option  Ambient to 350 ºCAmbient to 350ºC
Sub-Zero cooling option  -25 ºC to 230ºC
Customized Cooling During Testing  ⬤⬤
Cooling Between Tests⬤⬤⬤⬤
Frequency0.01 to 20 RPM100 cpm0.1 to 3000 cpm0.1 to 3000 cpm100 cpm
(1.67 Hz)(0.0016 to 50 Hz)(0.0016 to 50 Hz)(1.67 Hz)
Strain 0.5 Standard (7%); 0.2, 1.0, 3.0 and 7.17 degrees±0.07% to ±1255% (±0.005 to ±90 degrees)±0.07% to ±1255% (±0.005 to ±90 degrees)0.5 Standard (7%); 0.2, 1.0, 3.0 and 7.17 degrees
Premier MV Premier MDR Premier RPA Premier ESR MDR-C
Customizable Software Config ⬤ ⬤ ⬤ ⬤
Automation Queuing Add-Ons ⬤ ⬤

Premier MV Premier MDR Premier RPA Premier ESR MDR-C
4 Post Design, Excellent Stiffness ⬤ ⬤ ⬤ ⬤
Dynamic™ ⬤ ⬤ ⬤
Smart Alignment™ ⬤ ⬤ ⬤
Rapid Change™ ⬤

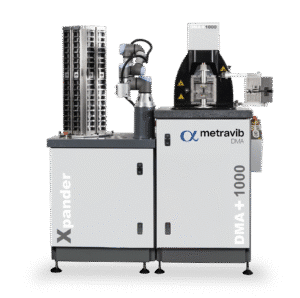

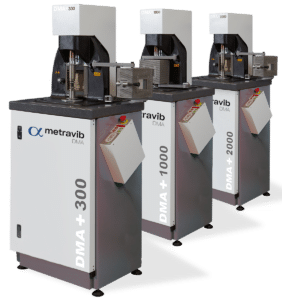

Dynamic Mechanical Analyzer (DMA) ⬤ ⬤
Pressure Transducer ⬤ ⬤ ⬤ Option
Controlled Strain Setting ⬤ ⬤
Cure Kinetics ⬤ ⬤ ⬤ ⬤
Extended Dynamic Range (EDR) ⬤ ⬤
Large Amplitude Oscillatory Shear (LAOS) ⬤ ⬤

Optimize Your Rubber Testing with Alpha!

Get a custom quote for precision instruments that enhance the quality, sustainability, and performance of your materials – and are backed by unmatched support.

Get a Quote
